TOPINCN 360 Degree Wind Direction Sensor, Precise Anemometer with ABS Material and Resistance, for Garden Greenhouse Environmental Monitoring

Spec: Item Type: Wind Direction Sensor Material: ABS Weight: Approx. 385.00g/13.58oz Product Size: Approx. 223x190x70mm/8.78x7.48x2.76in Power Supply Voltage: DC 5V Output: 0 to 2.5V Extension Cable Length: 0.8m Accuracy: directional: ±3° Resolution: directional: 1° Startup Wind Speed: ≤0.8m/s Maximum Power Consumption: 0.48W Load Capacity: DC 12V power supply, current output impedance ≤350Ω DC24V power supply, current output impedance ≤900Ω Voltage output impedance ≥1KΩ Operating Environment: Temperature -35℃ to 60℃ Humidity ≤100%RH non condensing Protecting Level: IP64 Cable Level: Rated voltage: 300V 80℃ Application: for garden, greenhouse, environmental protecting, meteorological station, ship, dock, aquaculture, advertising barrier, weather, marine, environment, airport, port, laboratory, ​ and traffic environment wind direction measurement Installation Aperture: 3.2mm/0.13in Mating Plug Diameter: 15mm/0.59in (recommend reserving 25mm for wiring, wire up first, then install and fix the sensor) Calculation Formula: 0 to 2.5V: F=V/2.5x359 Note: F represents wind direction angle value, unit: °; V represents sensor output voltage value, V Wiring Method: Red wire output signal (voltage): power Black wire output signal (voltage): power negative Yellow wire output signal (voltage): signal Troubleshooting: 1. The impeller does not rotate smoothly and is severely delayed. Due to foreign objects or jamming inside the bearing caused by long term use. Please return the sensor to the company for processing 2. Analog signal, the displayed value is incorrect when RS485 output. It may be due to wiring problems or communicating port failures leading to the inability to obtain correct data. Please check if the wiring is correct and secure, whether the communicating port is in use, and whether the

• [Durable and Robust Construction] Built with low inertia abs material this sensor offers improved wind direction response and long term durability. its robust design ensures impact resistance and strong strike protection making it suitable for harsh weather conditions. the construction guarantees reliable performance even in extreme environments with temperatures ranging from -35℃ to 60℃.
• [Precise 360 Degree Measurement] The wind direction sensor utilizes a high precision angle sensor to deliver accurate 360 degree wind direction measurements with an directional accuracy of ±3° and resolution of 1°. ensuring reliable data for various applications including meteorology environmental monitoring and aerospace. its linear output and high accuracy make it a dependable tool for wind observation.
• [Accurate and Efficient Operation] Operating on a rotating principle this anemometer sensor provides precise wind direction measurements with no dead spots. it features a low startup wind speed of ≤0.8m/s and maximum power consumption of 0.48w. the sensor’s voltage output impedance ≥1kω ensures efficient performance for various power supply conditions.
• [Versatile Application] Ideal for gardens greenhouses meteorological stations ships docks and aquaculture. this wind direction sensor is also perfect for advertising barriers weather marine environments airports ports laboratories and . its wide range of applications makes it a versatile tool for accurate wind direction measurement in diverse settings.

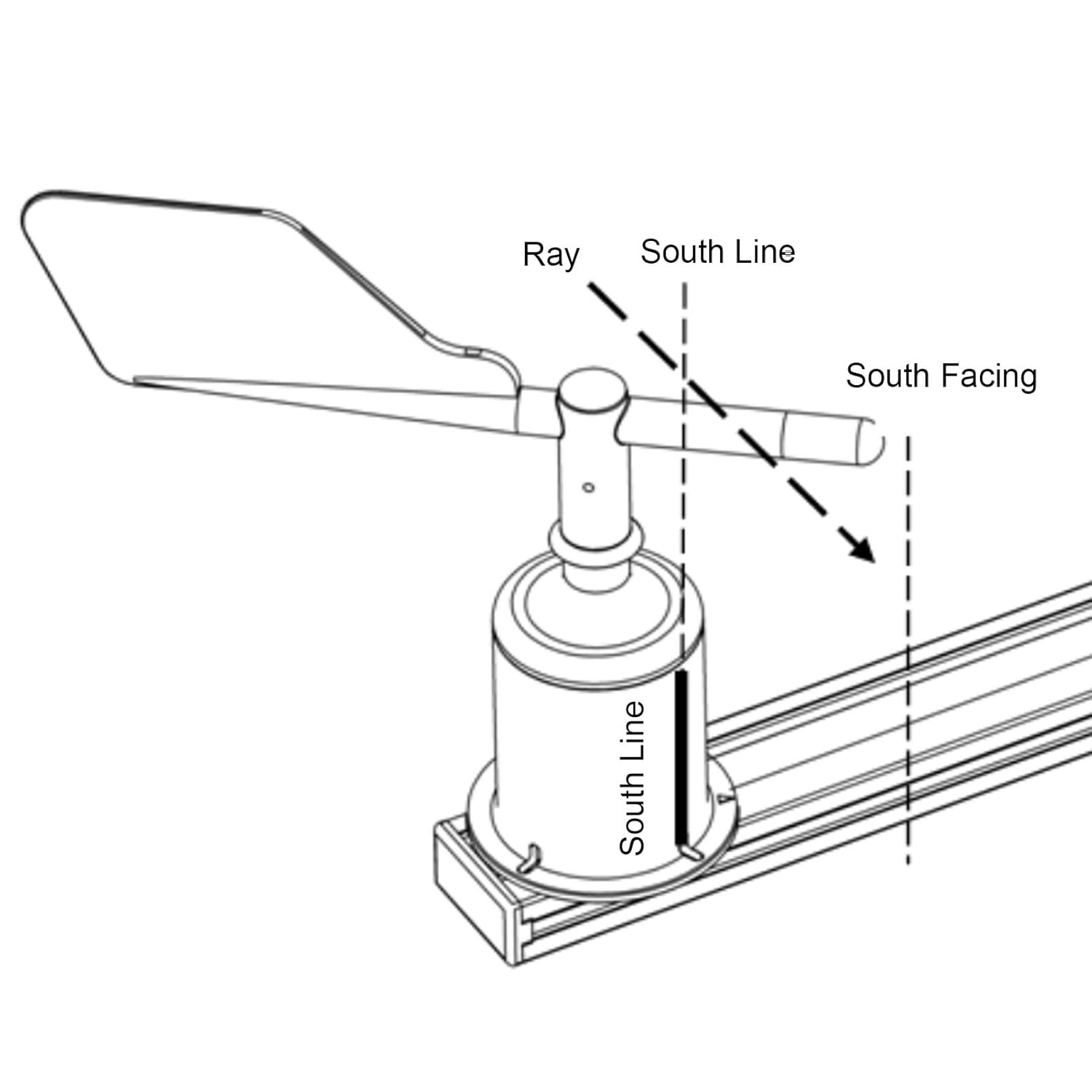

• [Easy Installation and Portability] With a compact size of 223x190x70mm and weighing only 385g this sensor is easy to install and transport. the included 0.8m extension cable simplifies setup while the small and portable design allows for convenient wind observation in different locations. perfect for both stationary and mobile wind monitoring needs.How to Use: Installation Method: 1. Ensure that the mounting bracket is parallel to the ground 2. After connecting the sensor cable, use the
