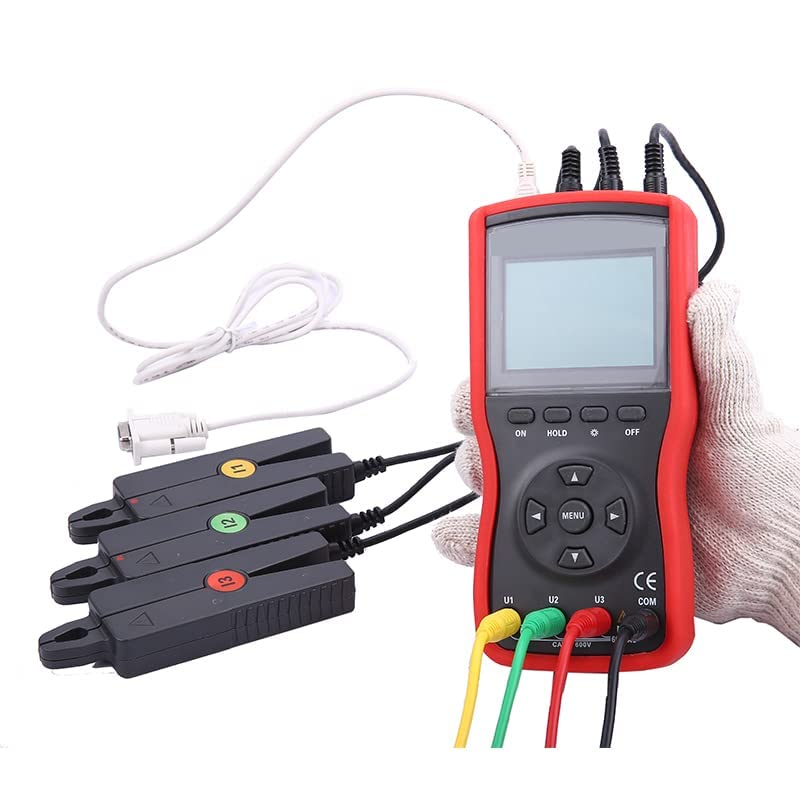

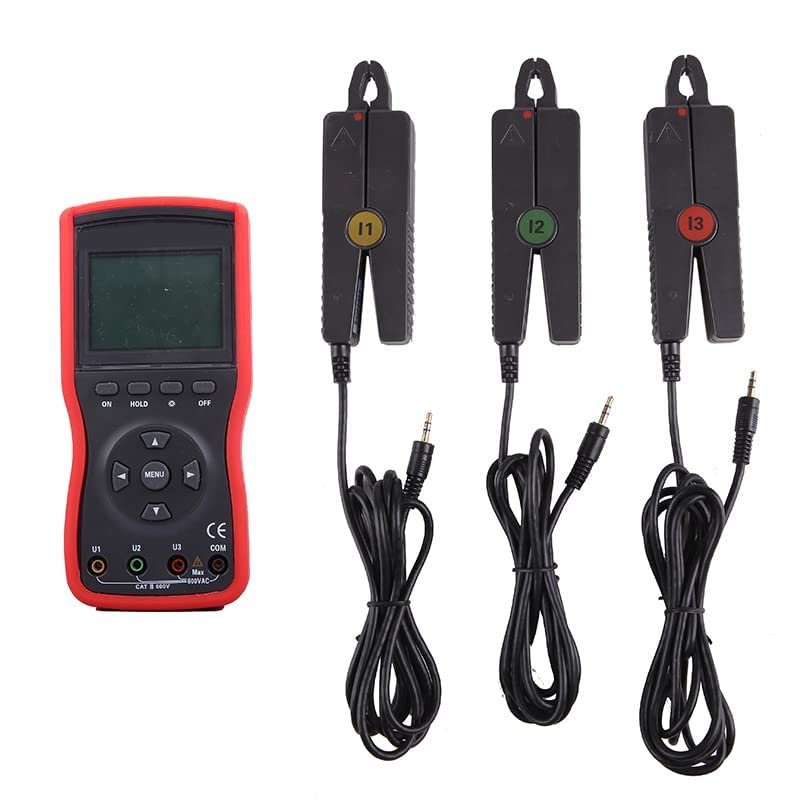

Three-Phase Digital Phase Volt-Ampere Meter AC Voltmeter Voltage Current Tester with AC Current Range 0.0mA~20.0A, AC Voltage Range 0.00V~600V

QIUSUO Three-phase Digital Phase Volt-Ampere Meter AC Voltmeter Voltage Current Tester with AC Current Range 0.0mA~20.0A, AC Voltage Range 0.00V~600V Technical specifications Clamp Size:Φ8mm Weight:1310g Range, Resolution, Error( reference conditions): Voltage Range: AC 0.00V~600V Resolution: AC 0.01V Error: ±(0.5% range) Current Range: AC 0.0mA~20.0A Resolution: AC 0.1mA Error:±(0.5% range) Phase Range: 0.0°~360.0° Resolution: 0.1° Error: ±1° Frequency Range: 45.00Hz~65.00Hz Resolution:0.01Hz Error:±(1.0% range) Active power Range:0.0W~12kW Resolution:0.1W Error:±(1.0% range) Reactive power Range:0.0var~12kvar Resolution:0.1varError:±(1.0% range) Apparent power Range: 0.0VA~12kVAResolution:0.1VA Error:±(1.0% range) Power factor Range: -1~+1 Resolution: 0.001 Error: ±0.03 Current vector and range: 0mA~60.0A Resolution: 1mA Power Supply:DC9V Alkaline battery (LR6 1.5V AA×6)(batteries not included during the shipment!!!) Meter Dimension:196mm×92mm×54mm Detection Rate:About 2 second/times Data Storage:500 groups Data Hold:In testing, press HOLD key to hold the data,“HD” symbol display Phase Sequence:Positive phase: U1, U2, U3 or I1, I2, I3 cursors flash from left to rightInvert phase: U1, U2, U3 or I1, I2, I3 cursor flash from right to left Communication Interface:USB interface, store data can be upload to computer, convenient to analyze management data Cable Length:Test wire length: 1.5M; Current clamp Length: 2M Auto Shut Down:15 minutes after boot up, the meter shuts down automatically without any operation Voltage Detection:When the battery voltage is lower than 7.2V, low battery symbol appears, reminding replace battery Input Impedance:Test voltage input impedance: 1MΩ

• Three-phase digital phase volt-ampere meter is a multi-function, digital, intelligent meter designed for field testing, featuring high accuracy, high stability, low power consumption and ease of use.

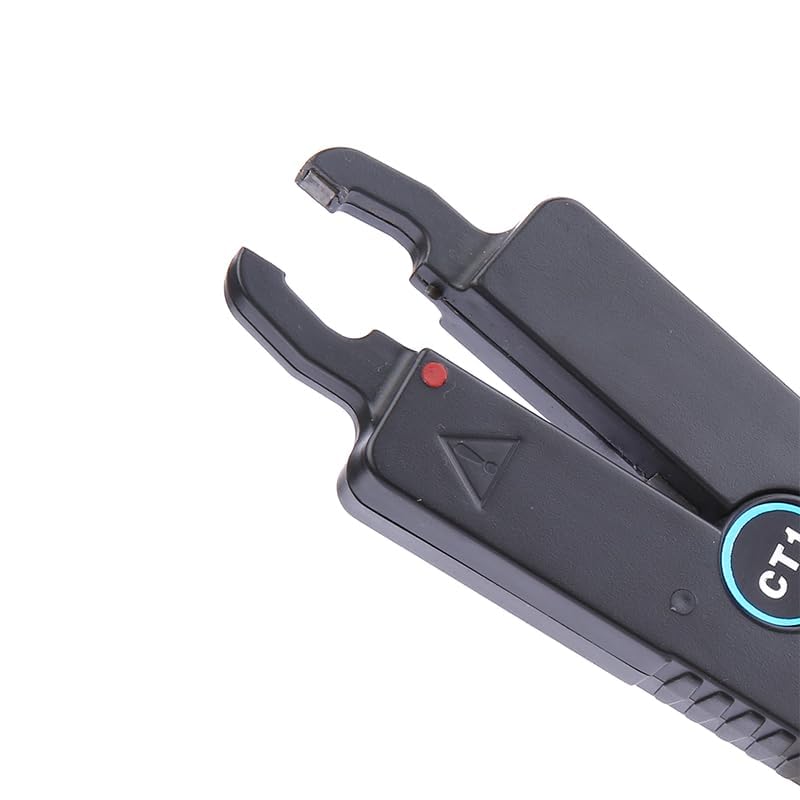

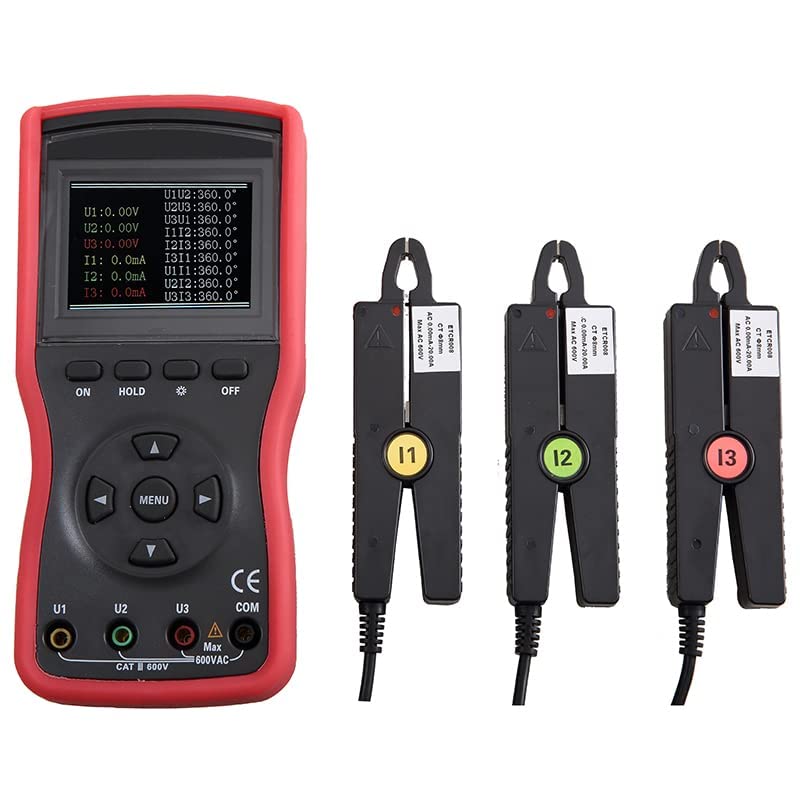

• Three-phase digital phase volt-ampere meter is equipped with anti-vibration, anti-slip, highly insulated sheath, using 2.8-inch TFT color LCD screen, dynamic display, vector diagram instructions, and its pointed small-shaped current clamp jaws are suitable for dense wiring places.
• It can simultaneously measure three-phase AC voltage, current, phase between voltages, phase between currents, phase between voltages and currents, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector
• Discriminate transformer wiring group, inductive, capacitive circuit, test the secondary circuit and differential protection system, read the phase relationship between the CTs of differential protection groups, check whether the wiring of the meter is correct or not, and overhaul the line equipment.
• Three-phase digital phase volt-ampere meter is suitable for electric power, petrochemical, metallurgy, railroad, industrial and mining enterprises, scientific research colleges and universities, metrology departments. Especially suitable for electric energy billing system and relay protection system.
