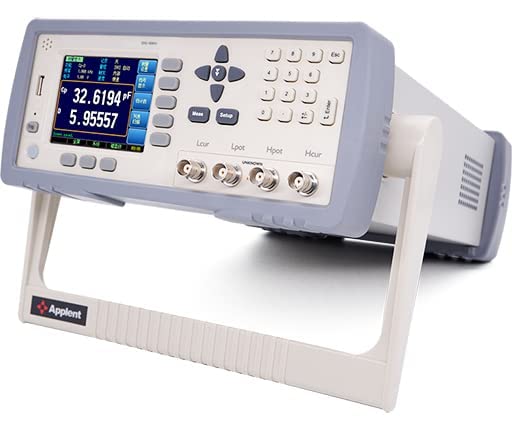

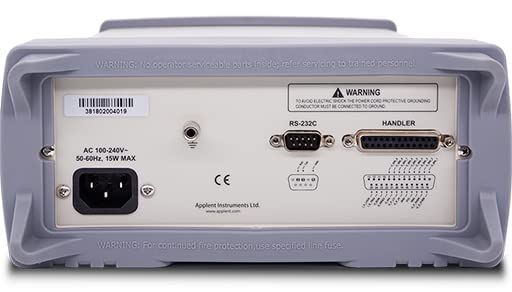

Precision LCR Meter Digital LCR Meter Tester Gauge Measurement with 10Hz to 200kHz Resolution 0.01Hz ParameterZ D Q θr θd R X G B Y Vac Iac Δ Δ% Display Reader 6 Digits
$2,269.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by onestophomeautomation.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$2,269.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by onestophomeautomation.com
Free 30-day returns Details
Product details
| Management number | 210911539 | Release Date | 2026/04/04 | List Price | $907.60 | Model Number | 210911539 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The newly upgraded LCR Meter adopts true color TFT-LCD display. Displayed in large fonts, readings are more intuitive.
- Can scan 10 kinds of frequencies or level lists, and can also be used for 3 groups;User frequency is corrected to improve accuracy.
- With continuous frequency point of 10Hz~200kHz with a resolution of 0.001Hz. Test signal level 0.01Vrms ~ 2.00Vrms (10mV step), add DCR measurement and internal DC bias (DC BIAS, ±2.5V) .
- Built-in comparator, through the HANDLER interface combined with PLC to complete the automatic sorting of components;Built-in RS232/RS485/USB interfaces and GPIB inteface optional, SCPI and Modbus support.
- It can test the 4 parameters of the component at the same time. Each parameter can be arbitrarily configured. The newly improved instrument realizes full 6-bit display of the main and auxiliary four parameters.
| Color | White |
|---|---|
| Model | 2023050413 |
| Brand Name | YFYIQI |
| Item Weight | 1.5 Kilograms |
| Manufacturer | YFYIQI |
| Item Dimensions | 13.78 x 10.63 x 4.33 inches |
| Included Components | LCR Meter |
| Warranty Description | 1 year |
