LCR-ST2 2-in-1 Digital LCR ESR Clamp Meter, Auto Recognition R/C/L, Kelvin Clip, Multi-Mode Display for Testing of Component Tester(LCR-ST2 high)

Features:The LCR-ST2 is a versatile portable test instrument that accurately measures resistance, capacitance, inductance, and diodes, and can measure voltages up to 30V. Utilizing advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.It features a 1.47-inch high-definition color display and a magnetic mounting design, enhancing ease of use and portability. A built-in 300mAh lithium battery provides extended battery life. The instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.Its unique clamp-style design is particularly suitable for delicate work in confined spaces, enabling for rapid testing of electronic components. Furthermore, the LCR-ST2 offers a scanning function, capable of quickly scanning component parameters across the entire frequency range (100 Hz to 100 kHz) and acquiring multi-frequency data with a single press, enabling accurate component characteristic analysis.The intelligent sorting function automatically classifies and components, significantly improving batch testing efficiency. The dual-mode simultaneous display function allows two measurement modes to be displayed on the same screen, facilitating direct comparison and making result analysis more intuitive. The LCR-ST2 is lightweight and portable, making it an indispensable and efficient tool for field engineers and laboratory applications.Specifications:Part Name: LCR-ST2 2-in-1 Digital LCR ESR Clamp MeterMaterial: ABSModel: LCR-ST2Screen: 1.47-inch HD Color ScreenBattery: 300mAh Lithium BatteryBattery Life: Approx. 3 hoursCharging Interface: Type Csize: 31 × 170.7 × 20.3 mmOperating Temperature: 0℃–50℃ (≤75%RH)Storage Temperature: -20℃ to 60℃ (≤75%RH)Auto Power Off: Never / 5 minutes / 15 minutes / 30 minutesLanguage: English / ChineseCalibration: Open Circuit / Short Circuit / Multi-Resistor CalibrationAdjustable Screen Brightness and VolumeAuto Recognition (R/C/L)Capacitance Range: 1pF–22mFInductance Range: 1μH–10HResistance Range: 10mΩ-10MΩDiode Forward Voltage Detection: ≤0.7 VVoltage Range: ±30VFrequency Scan (100 Hz-100 kHz)Package Contents:LCR-ST2 Component 11. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Data CableLCR-ST2 Component 21. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Kelvin Test Segment6. Data Cable

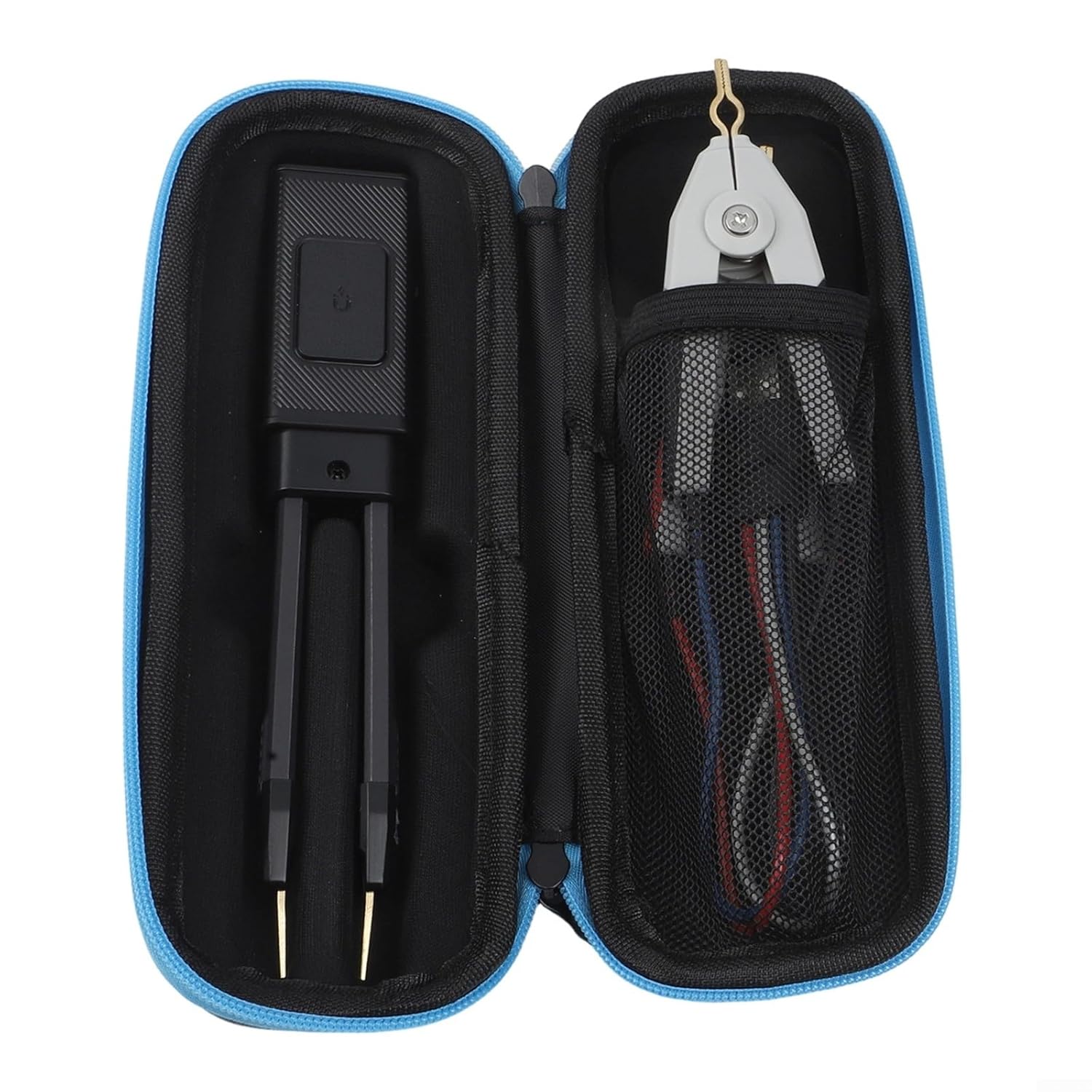

• [COMPLETE 2-IN-1 SET] Two LCR ST2 digital LCR ESR clamp meters included, each with clip-on fixture, storage bag, bent tip, cutting board and data cable; the second unit also includes a Kelvin test segment for accurate low resistance checks and ready out-of-the-box testing.
• [PRECISION LCR & ESR MEASUREMENTS] Accurate measurement of resistance from 10 milliohm to 10 megaohm, capacitance 1 pF to 22 , inductance 1 uH to 10 H, diode forward voltage below 7 V and voltages up to 30 V; supports ESR readings and five test frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz).
• [ONE-KEY FREQUENCY SCAN] Fast frequency scan across 100 Hz to 100 kHz captures multi-frequency component data with a single press, enabling quick characterization of capacitors, inductors and other components for efficient troubleshooting and sorting.
• [COMPACT CLAMP & USER-FRIENDLY DISPLAY] Clamp-style head fits confined spaces for rapid on-board testing, 47 inch HD color screen with dual-mode simultaneous display for side-by-side comparison, magnetic mounting and lightweight ABS housing for bench or field work.
• [CALIBRATION & PRACTICAL CONTROLS] Open/short/multi resistor calibration, auto recognition of R/C/L, adjustable brightness and volume, selectable auto power off settings, TYPE-C charging with 300 mAh battery (~3 hours runtime) and English/Chinese language support.
