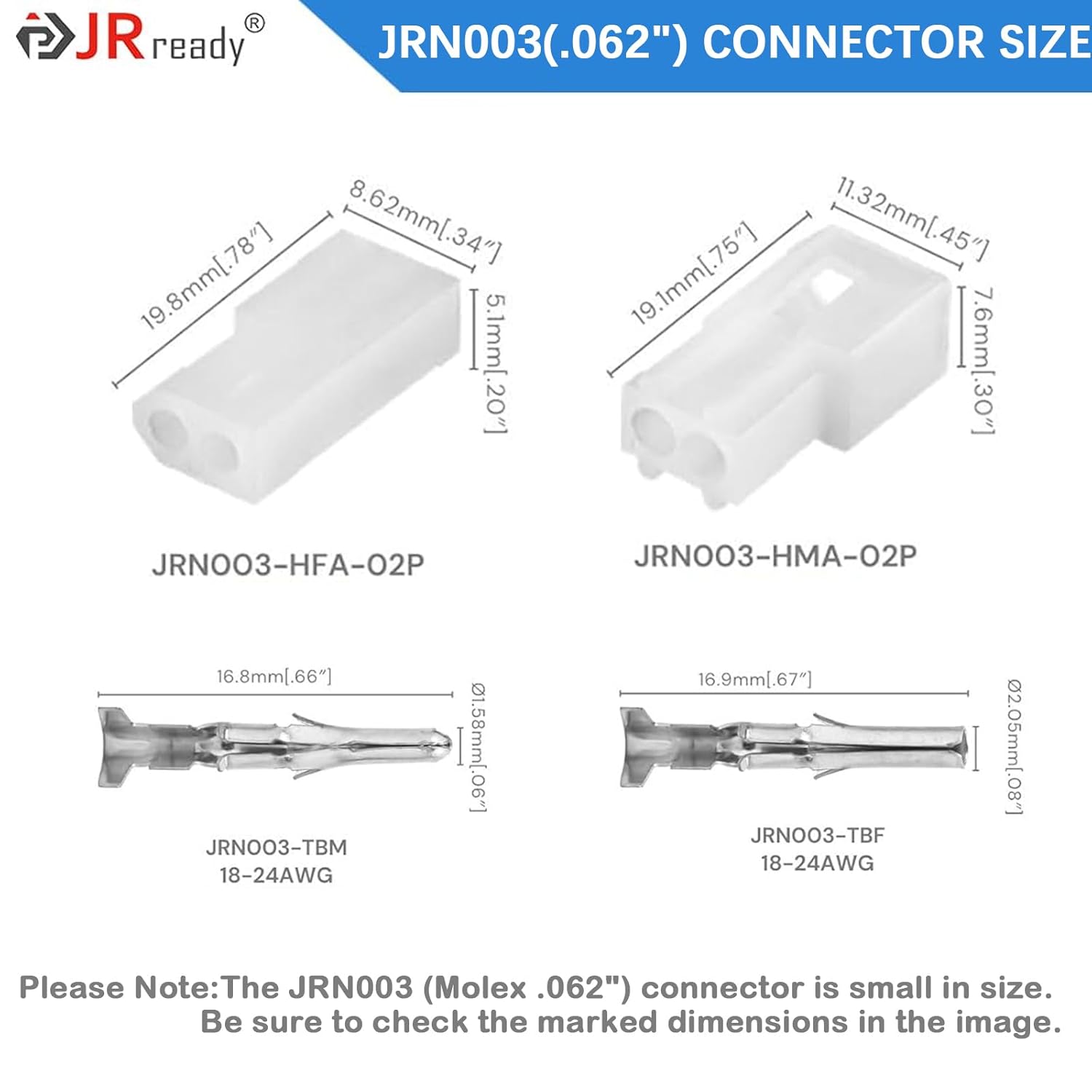

JRready ST6406 6Pairs Molex 2 Pin Connectors 062" 2 Circuits Connector Housing 3.68mm Pitch Crimp Terminals 18-24AWG Standard Molex 03061023 03062023 Connectors + ST6478 093" 062" Pin Connector Kit

JRready ST6406 6Pairs Molex 2 Pin Connector Kit 062" 2 Circuits Connector Housing 3.68mm Pitch Crimp Terminals 18-24AWG Standard Molex 03061023 03062023 Connectors + ST6478 093" 062" Pin Connector Kit

• ST6406 Package List: 2 Pin Male and Famale Connectors 6 Set, Crimp Pins and Crimp Sockets 14 Pairs.
• 【Housing Connector Performance】 The housing connectors is made of PA66 material, rated voltage is 250V AC/DC, operating temperature -40℃ to +105℃, the flame retardant grade is UL94-V2,. JRN002 connector standard Molex .093 series connector-5.03MM pitch, JRN003 for Molex .063 series connector-3.68MM pitch. PLEASE NOTE: The connector housing is transparent white. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions
• 【JRready Housing Connector Design】 The housing use a snap-in design ,the buckle does not loosen or fall, easy to disassemble and assemble and supports free assembly of connectors and pin jack terminals. different shape design of the two end of socket avoid mis-matching during the assembly process.
• 【Terminal Contact】 The terminals are made of tin-plated brass for better electrical conductivity, oxidation and corrosion resistance. Dual-locking tangs help prevent backing out ensuring a strong electrical connection. Opening design reduces the insertior force and improves the insertion and extraction durability more than 100 times. JRN002 2.36mm diameter, Wire range 14-20 AWG(0.5mm²to 2mm²), rated current 12A. JRN0031.57mm diameter, wire range 18-22AWG(0.32mm² to 0.8mm²), rated current 5A.
• 【Pin Extractor Tool 】The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness. JRconDRK-T320360 is suitable for JRN002 series connector. JRconDRK-T220260 is suitable for JRN003 series connecto
