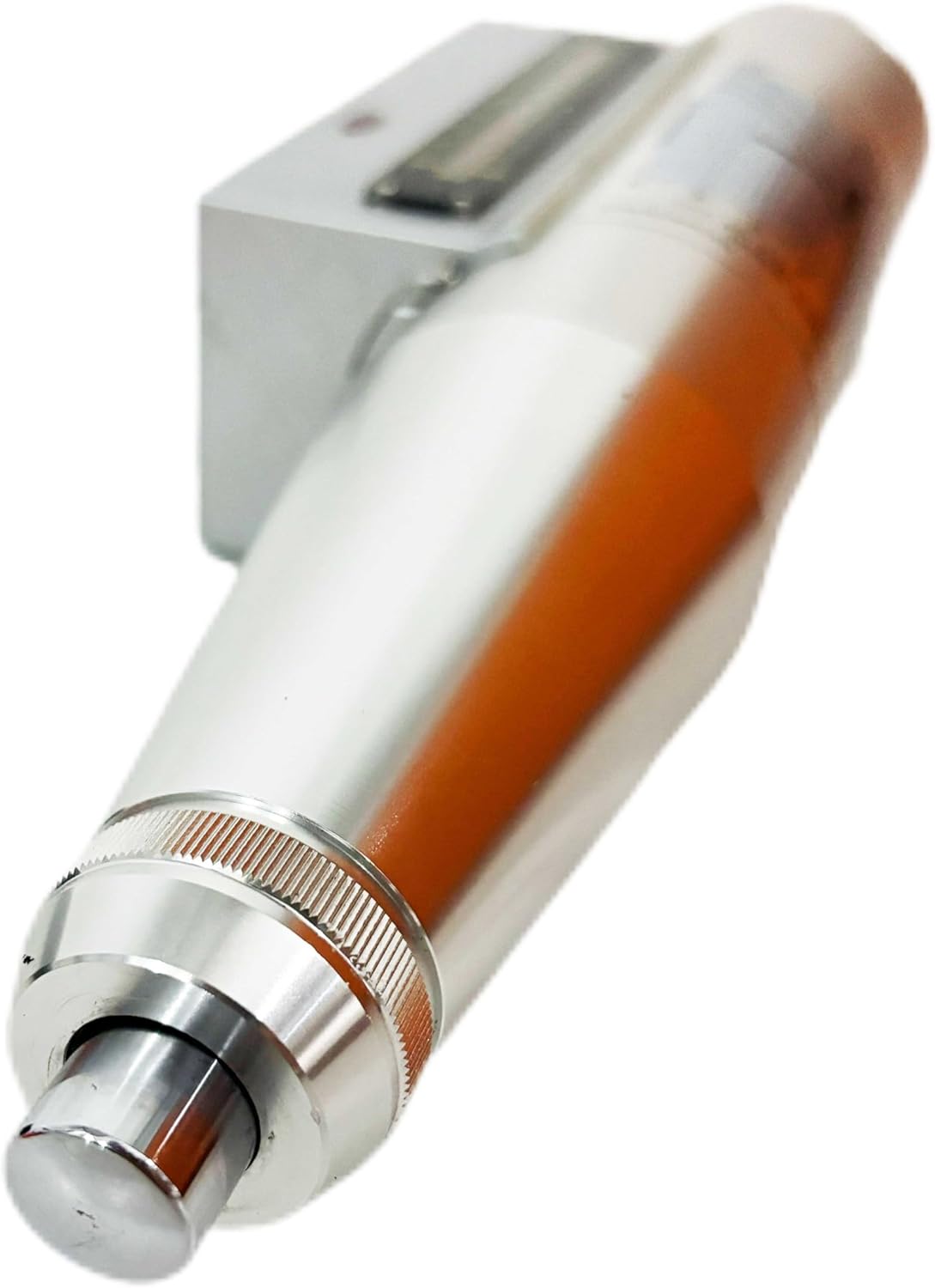

Digital Concrete Test Hammer Integrated Voice Concrete Rebound Hammer Rebound Test Hammer NDT Concrete Testing Equipment Resiliometer Spring Constant 785N/m Data Storage Function USB Interface

Introduction: ▲Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2011 technical regulations.The instrument is popularly used for quality Inspection Company making supervisory monitoring, random monitoring ,on-the-spot testing, and also used for sampling and laboratory center. No need to manual calculation. Machine automatically compute and show result. Features: ▲The test hammer adopt to true color LCD display screen. (resolution ratio176*220). Easy to operate and make your work efficient. ▲The voice function let testing personnel not see the value and improve test efficiency. ▲Great capacity data storage. It can store the most 200 standard elements. One element can test 99 test areas completely meeting the need of the actual detection work. ▲Calendar and clock function can automatic record each component testing date and time. ▲Test hammer adopt to Non-contact metal reflection grating sensor avoiding physical deterioration and poor contact defect. It improves accuracy and use time. Meanwhile, maintain the mechanical pointer scale. . Technical Specifications ▲Measuring ranges: 10-60MPa ▲Impact energy: 2.207J ▲Spring constant: 785N/m ▲Spring extension: 75±0.3mm ▲The average rebound values on steel anvil: 80±2 ▲The consistency of the sample showing values:≤±0.5 (Digital output sampling value difference with the cursor readings) ▲Display: 16-bit true color, 176 * 220 resolution, 5 grades backlight adjustment ▲Data storage: 500 standard components (each component of the 99 measuring area), 20 special strength curve ▲Power: 3.7V/1500mAH rechargeable Li battery. ▲Power consumption: largest back light≈100mA(voice shut down) ▲connect interface: USB2.0 ▲Weight: 1.1Kg ▲Optional Accessories: IR Printer Selectable ▲If you need Optional Accessories,Please contact us.

• True Color LCD Display Screen: The test hammer features a true color LCD display screen with 176*220 resolution ratio, making it easy to operate and enhancing work efficiency
• Integrated Voice Function: The voice function allows testing personnel to receive values without looking at the display, improving test efficiency during concrete testing operations
• Large Capacity Data Storage: Can store up to 200 standard elements with each element capable of testing 99 test areas, completely meeting the needs of actual detection work
• Automatic Date and Time Recording: Calendar and clock function automatically records each component testing date and time for comprehensive documentation
• Non-Contact Metal Reflection Grating Sensor: Test hammer uses advanced sensor technology to avoid physical deterioration and poor contact defects, improving accuracy and extending use time while maintaining the mechanical pointer scale
• Professional Concrete Testing Equipment: Consistent with GB/T9138-1988 standards and JJG817-93 statutes, measuring ranges of 10-60MPa with 2.207J impact energy and 785N/m spring constant
• USB Interface and Rechargeable Battery: Features USB2.0 connectivity for data transfer and powered by 3.7V/1500mAH rechargeable lithium battery for portable operation
