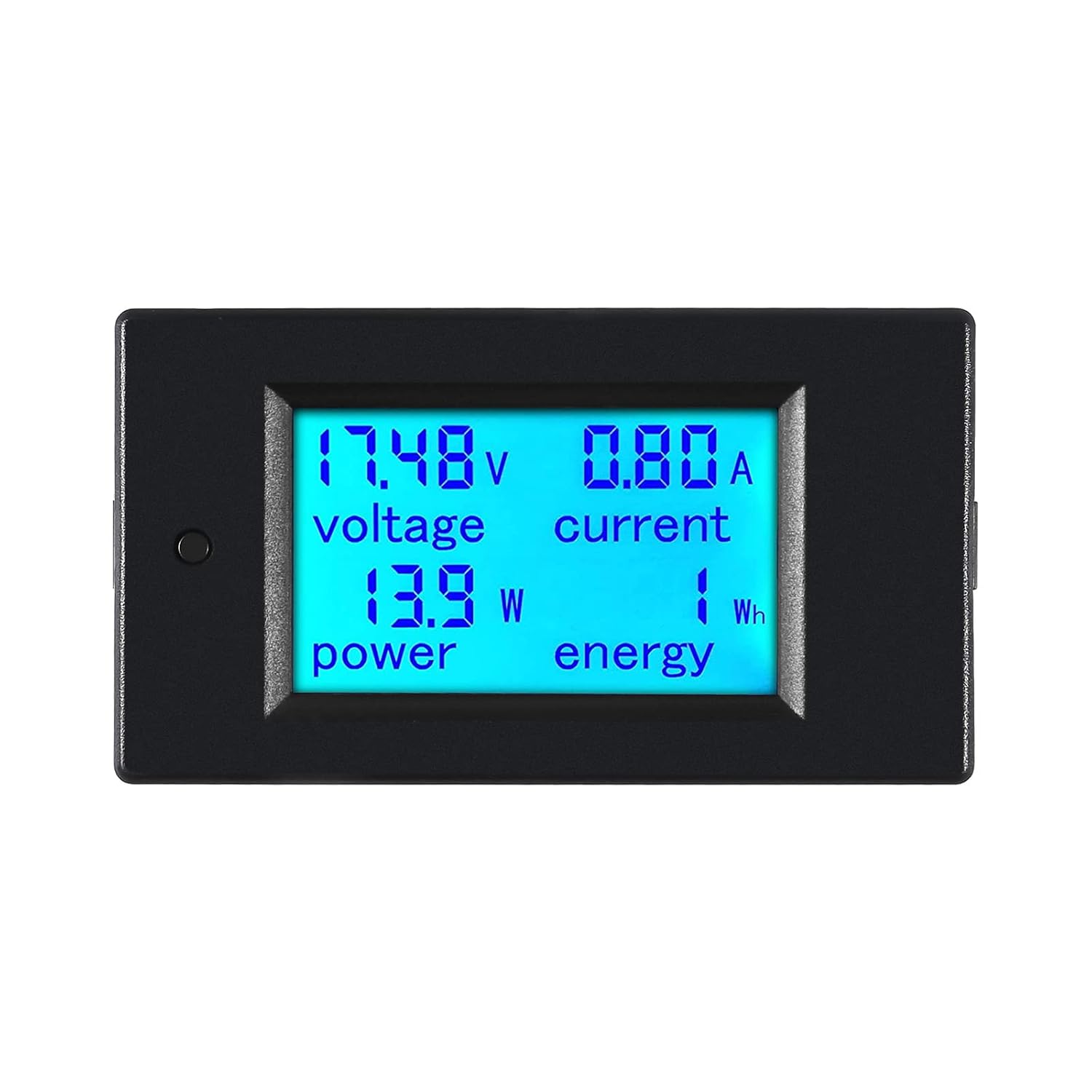

DC Current Voltage Meter Digital Current Voltage Power Energy Meter LCD Display DC 6.5-100V 0-20A (with Built-in Shunt)
Product details
| Management number | 213672201 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213672201 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Working voltage: DC 6.5~100VCurrent: 0~20AMeasuring Accuracy: 1%Power Consumption:0.2WMeasurement speed:2 times/sStore Energy data when power off. (Can be reset to 0.)The blue backlight can be turned on/off manuallyActive Power test range: 0~10kWEnergy test range:0~9999kWhNOTE:Applied load should not exceed the rated power.This module is not suitable for outdoors.Package includes:1x DC 6.5-100V 0~20A Digital Current Voltage Power Energy Meter With Built-in Shunt
- Voltage:DC 6.5~100V;Current: 0~20A; Energy test range: 0~9999kWh(With Built-in Shunt).
- Note:The shunt must be connected to the negative electrode.
- Voltage alarm function:When the test voltage exceeds the alarm threshold (6-90V), the backlight and voltage value flash simultaneously.
- Easy to connect:Built-in shunt,2-wire input (DC + and -) and 2-wire output (load);All connections via 4-point terminal strip (with wiring diagram on the back).
- LCD display:Large screen can display voltage,current,power and energy.1.99''X1.18'' display,easy to read and use.
- Application:Suitable for commercial, industrial power monitoring and management.
| UPC | 701715525054 |
|---|---|
| Color | 20A |
| Model | DT220707 |
| Brand Name | Diitao |
| Style Name | DC 6.5-100V 0-20A |
| Item Weight | 0.08 Kilograms |
| Manufacturer | Diitao |
| Power Source | Corded Electric |
| Measurement Type | Multimeter |
| Included Components | Voltage Amperage Power Energy Meter |
| Minimum Operating Voltage | 6.5 Volts (DC) |
