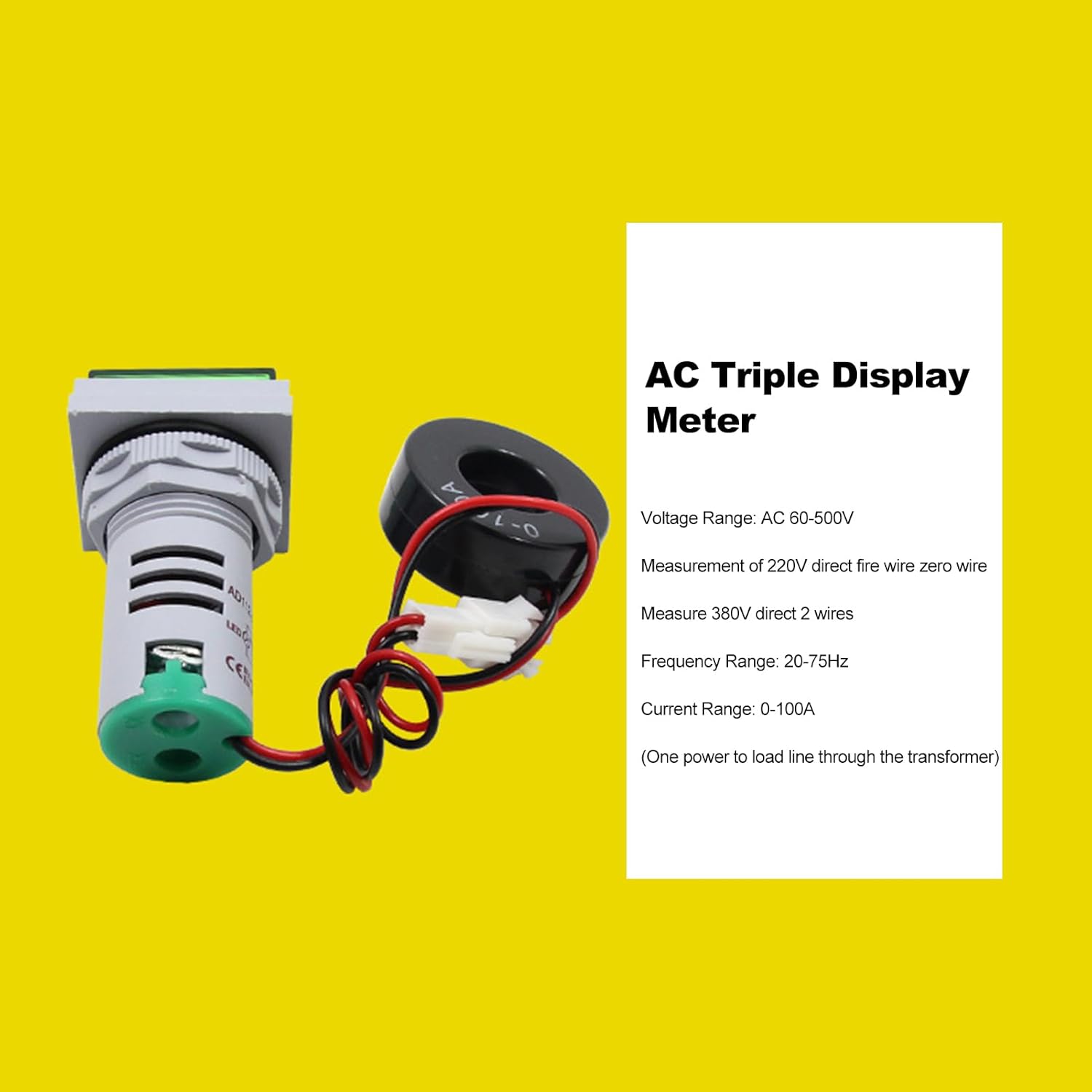

AC 60-500V 0-100A 20-75Hz 3 in 1 LED Indicator - 22mm Square Head Digital Measuring Instrument for Voltage Current and Frequency Monitoring - Signal Display with Screw Type (Green)

Specifications:Color: Red / Yellow / Blue / White / Green (Optional)Model: AD16-22VAHMaterial: ABSVoltage Measurement Range: AC 60-500VCurrent Measurement Range: 0-100AFrequency Measurement Range: 20-75HzHole Size: 22mm diameterPanel Size: 32 * 32mmItem Size: 32 * 32 * 55mm / 1.25 * 1.25 * 2.16inPackage Weight: 200g / 7.05ozPackage Size: 10 * 10 * 6cm / 3.93 * 3.93 * 2.36inPackage List：1 * Digital Indicator

• Triple Parameter Measurement: This 3 in 1 digital meter simultaneously displays AC voltage, current, and frequency on a three digit LED indicator for real time electrical system monitoring.
• Technical Specifications: The instrument supports a wide range of AC 60 - 500V, current monitoring from 0 - 100A, and a frequency detection range between 20 - 75Hz.
• LED Digital Display: Features a square head design with high visibility LED light emitting chips that provide a bright and clear interface for easy identification of numerical values.
• Standard Panel Mounting: Designed for flexible installation with a standard 22mm diameter hole size for applications in power, telecommunication, machine tool, and textile machinery.
• Industrial Connection Design: Built with screw type wiring and silver contacts for electrical conductivity, utilizing spring material to ensure secure and stable terminal connections.
