2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh
Product details
| Management number | 212361694 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212361694 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

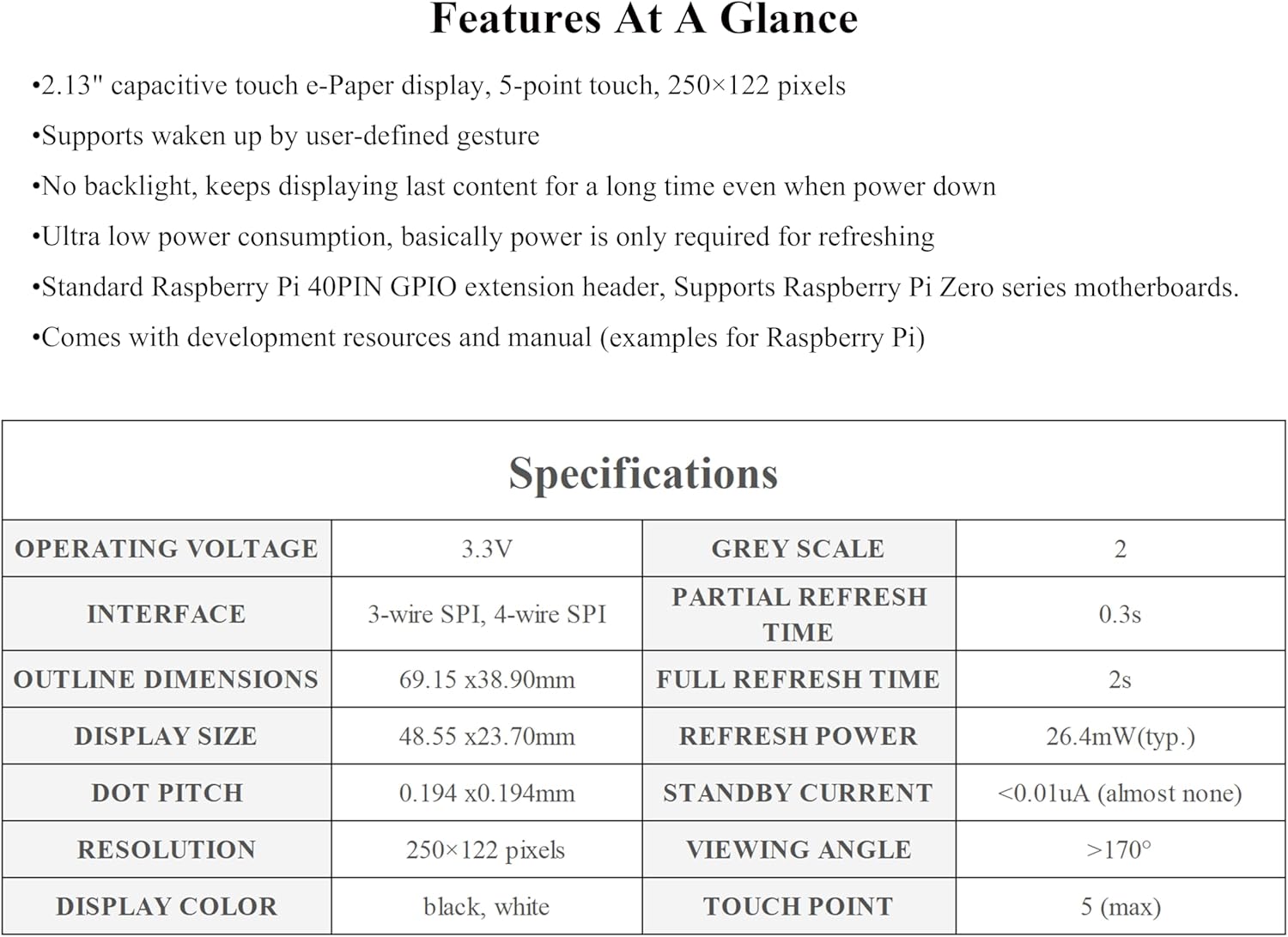

Overview 2.13"capacitive touch e-Paper display, 5-point touch, 250×122 pixels.Display color: black, white Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation. Specifications operating voltage--3.3V grey scale --2 interface--3-wire SPI, 4-wire SPI partial refresh time-- 0.3s full refresh time --2s display size --48.55 × 23.70mm refresh power --26.4mW(typ.) resolution --250×122 pixels viewing angle -->170° display color --black, white Touch point --5 (max) outline dimensions-- 69.15 × 38.90mm dot pitch --0.194 × 0.194mm standby current --<0.01uA (almost none) Online Tutorial/Online Document: n9.cl/wq54w Package Content 2.13inch Touch e-Paper HAT x1 ABS case x1 Screwdriver x1 Thermal tape x1 rubber feet 4PCS x1 Screws x2
- 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.

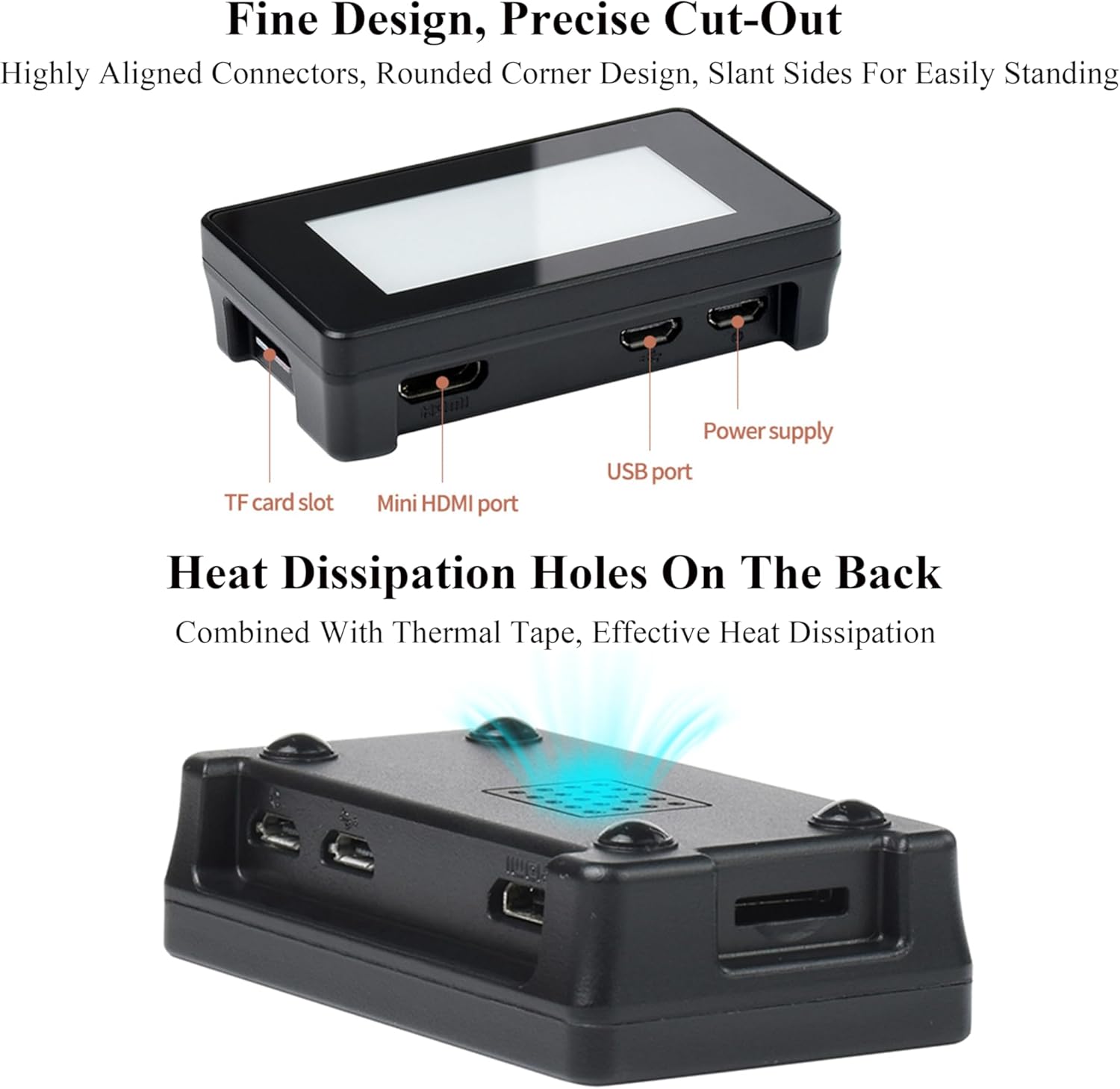

- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.

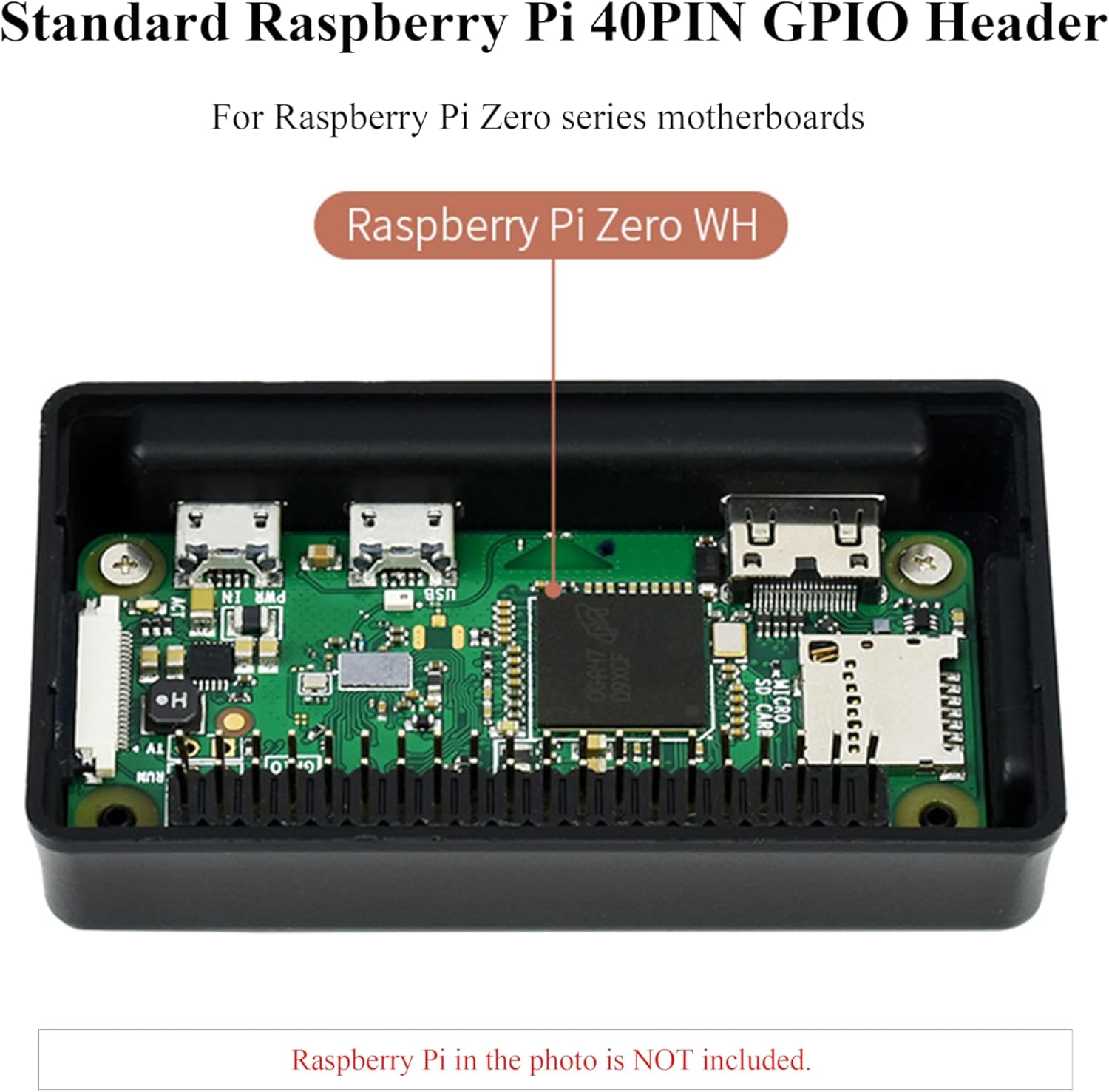

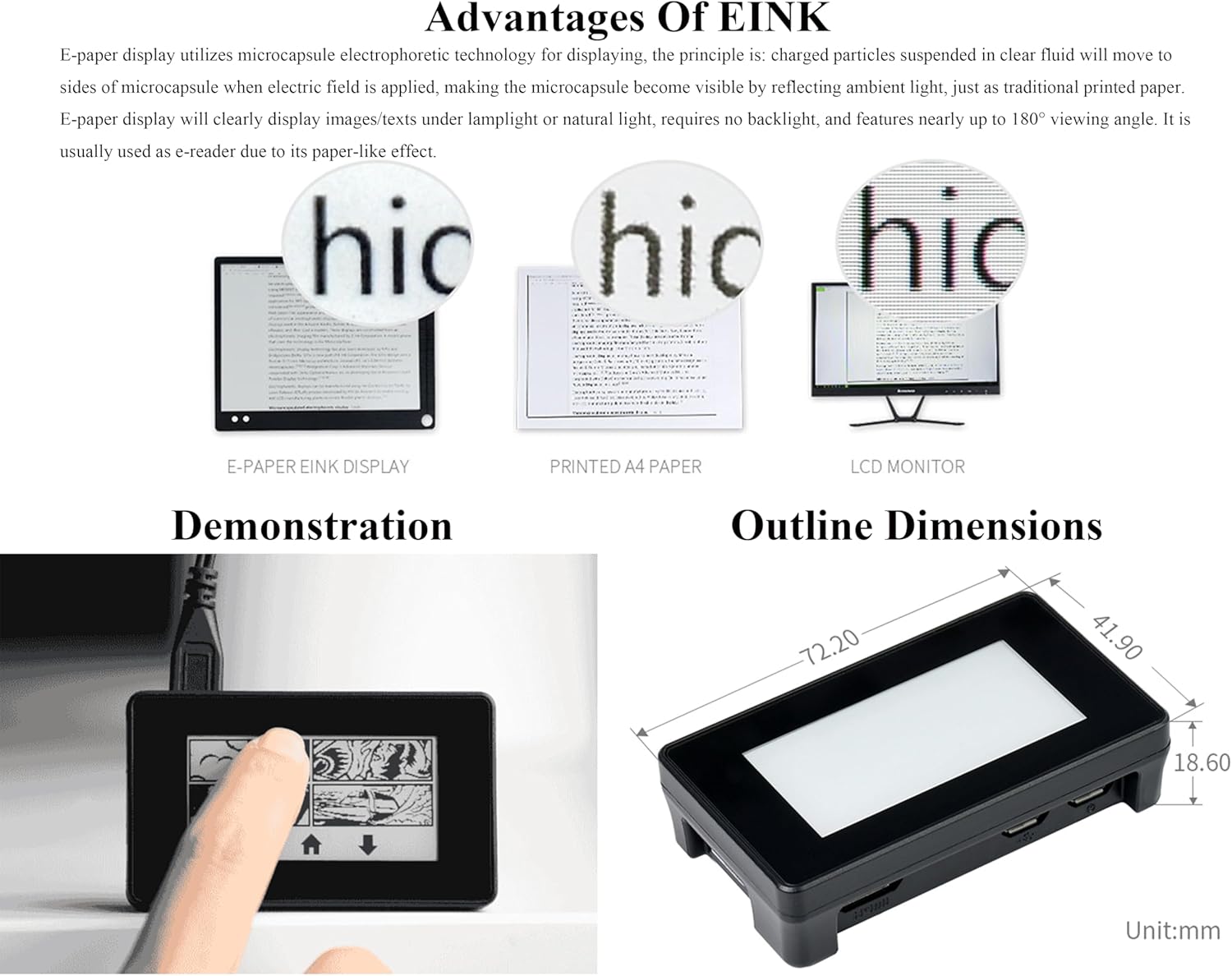

- Outline dimensions(Module): 69.15 × 38.90mm. Outline dimensions(Driver Board): 59.51mm × 34.00mm. Display area: 48.55mm × 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 × 0.194mm.
- Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .
- Comes with development resources and manual (examples for Raspberry Pi).
| Brand | waveshare |
|---|---|
| Model Name | H-2.13"Touch e-Paper+Case-P |
| Manufacturer | Waveshare |
| Model Number | H-2.13"Touch e-Paper+Case-P |
| BuiltIn Media | 2.13inch Touch e-Paper HAT, ABS case, Screwdriver, Thermal tape, rubber feet 4PCS, Screws 2PCS |
| Mfr Part Number | H-2.13"Touch e-Paper+Case-P |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi Zero 2 W, Raspberry Pi Zero, Pi Zero W, Pi Zero WH |
| Wireless Compability | Infrared |
| RAM Memory Technology | LPDDR2 |
| Connectivity Technology | GPIO |
